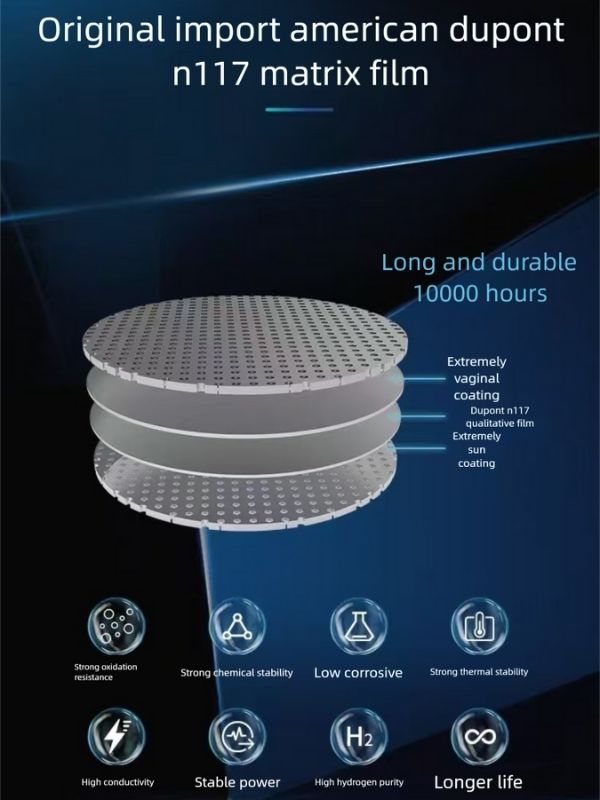

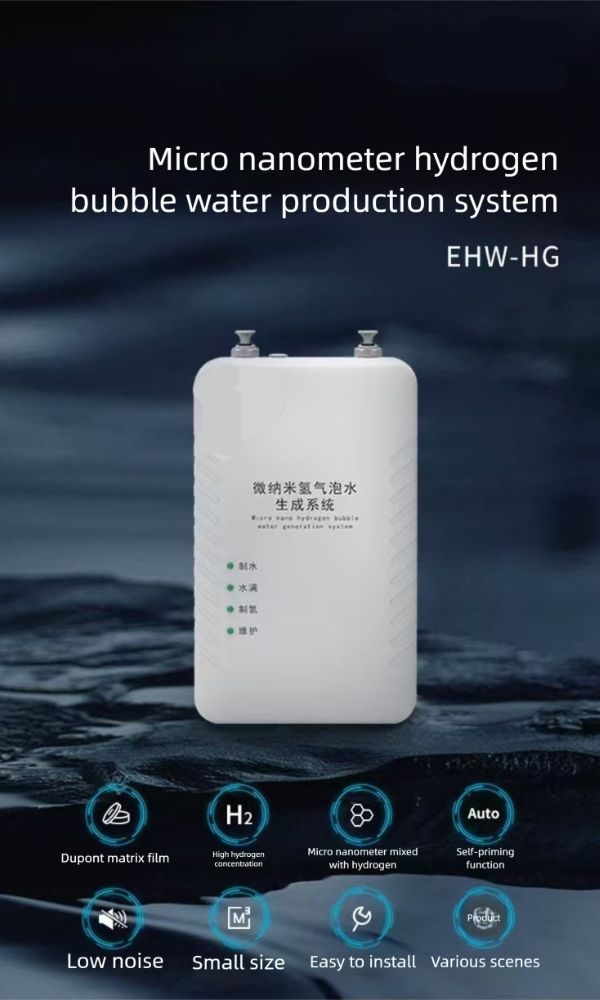

As a professional water purifier manufacturer, R&D has always been at the core of our business. The EHW-HG micro-nano hydrogen generation module is designed to upgrade RO water systems into hydrogen-rich water systems. By using electrolysis technology to generate hydrogen gas, and a built-in hydrogen mixing pump to fully blend hydrogen into purified water, this module provides stable and efficient hydrogen-enriched water output.

Two Operating Modes for Different Applications

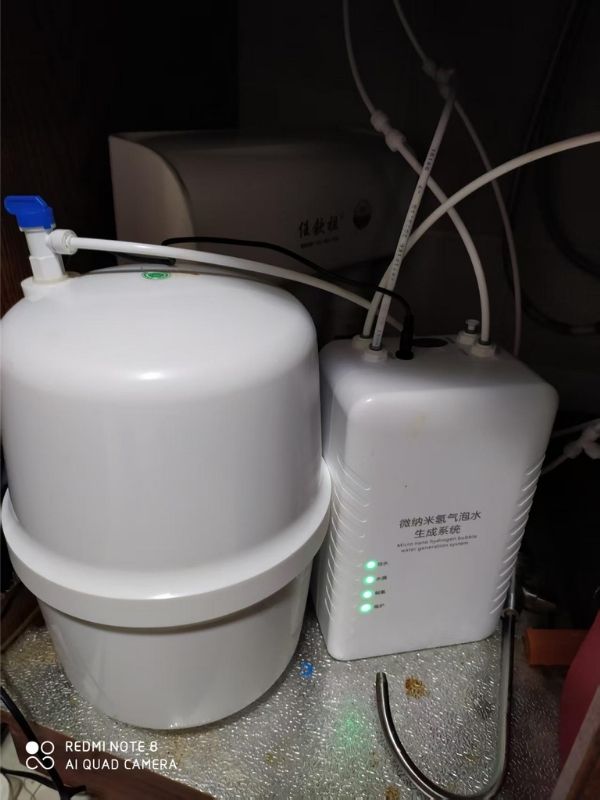

🔹 Mode 1: High-Pressure Switch Control (for household RO systems)

• When the faucet opens, the system starts hydrogen production.

• When the faucet closes, hydrogen generation stops automatically.

• Designed to match our universal RO purifier series and most under-sink RO systems.

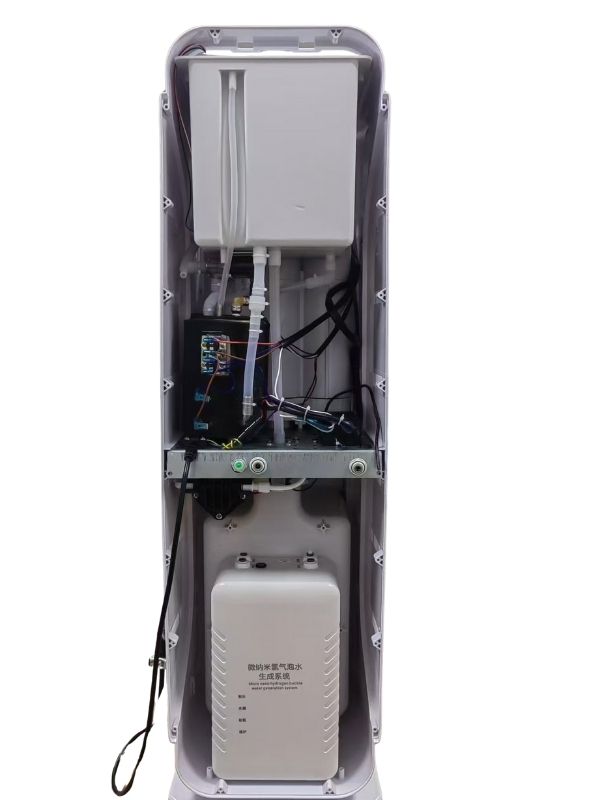

🔹 Mode 2: Low-Pressure Switch Control (for commercial water dispensers)

• When the low-pressure switch detects water entering the module, it activates hydrogen production.

• When water stops flowing in, the system shuts off.

• Perfectly compatible with commercial dispensers and high-volume applications.

Key Features

• Electrolysis-based hydrogen generation for stable and continuous performance

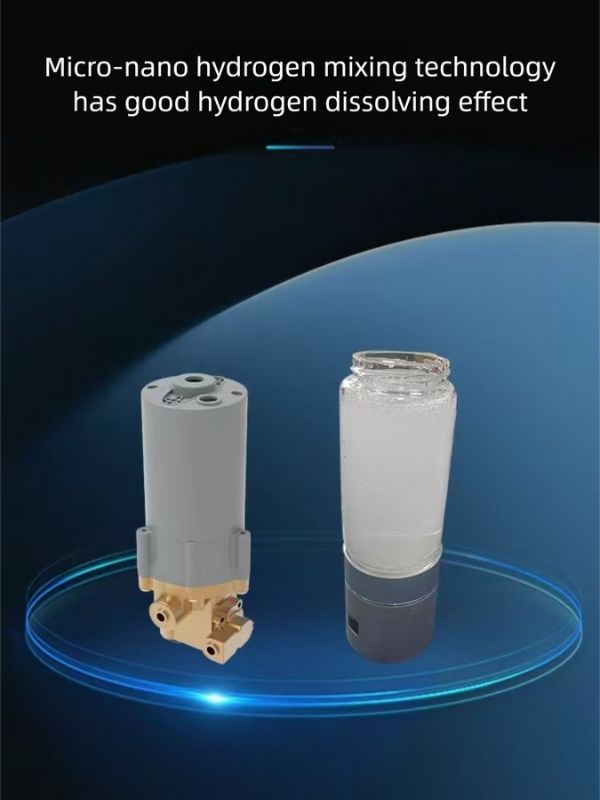

• Micro-nano hydrogen bubble technology improves hydrogen dissolution efficiency

• ≥1.2 L/min hydrogen water flow at 0.2 MPa inlet pressure

• Optional 2.5L hydrogen tank for enhanced system stability

• Works with purified water (conductivity 5 μs/cm) to ensure safe electrolysis

• Compact and lightweight module ideal for equipment integration

• Compatible with most RO water purifiers and commercial RO dispensers

Technical Specifications
